SCISSOR LIFT TABLE US TYPE from China manufacturer - Ningbo Ruyi Joint Stock Co.,Ltd

Payment Terms:	T/T,L/C,D/P,
Place of Origin:	Zhejiang, China (Mainland)

Product Detail

Model No.: S150/SP200/SP300/SP500/SP80...

Production Capacity: 100000PCS FOR ONE YEARS

Delivery Date: 20DAYS

Type: Others

Design: Others

Capacity: 150kg

Min. height of table: 225mm

Table size: 740*450*35mm

Overall length: 770mm

Service weight: 44kg

Means of Transport: Ocean,Land,

Packing: PALLET

Wheeled: Yes

Material: Others

Brand Name: XILIN

Max. lift height: 740mm

Lifting height: 515mm

Total height: 935mm

Carton size: 880*480*265

qTY./20' Container: 192pcs

● Valuable material handling equipment for use as a feeling table on assembly line.
● Structural heavy duty steel construction.

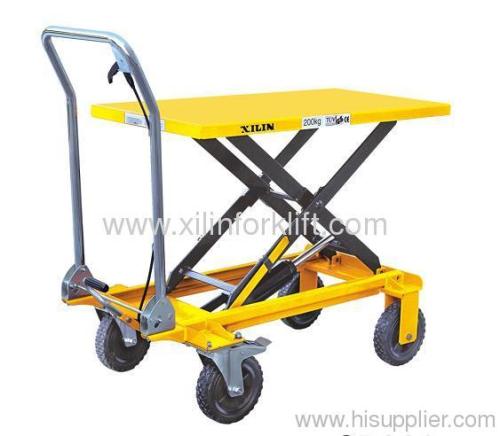

SCISSOR LIFT TABLE

SCISSOR LIFT TABLE US TYPE

Specification for US type

MODEL		SP150	SP200	SP300/SP500	SP800
Capacity	kg	150	200	300/500	800
Max. lift height	h12(mm)	740	1000	900	1000
Min. height of table	h13(mm)	225	330	280	420
Lifting height	h3(mm)	515	670	620	580
Table size	l×b5×s(mm)	700×450×35	1000×500×35	815×500×50	1000×510×55
Total height	h14(mm)	935	1056	996	996
Overall length	l1(mm)	770	1120	942	1150
Foot pedal cycles to max height		≤25	≤25	≤32/≤45	≤70
Wheel diameter	d(mm)	100	200	127	150
Qty./20' Container	PCS	192	72	120	52
Service weight	kg	44	71	77/85	103
Carton size	mm	820×480×265	1140×620×460	960×530×420	1190×630×430

Specification for US type

MODEL		SP500A*	SP500B*	SP500C*
Capacity	kg	500	500	500
Max. lift height	h12(mm)	900	1100	900
Min. height of table	h13(mm)	305	310	305
Lifting height	h3(mm)	595	790	595
Table size	l×b5×s(mm)	1050×700×52	1200×800×52	1050×850×52
Total height	h14(mm)	970	970	970
Overall length	l1(mm)	1120	1270	1120
Foot pedal cycles to max height		≤55	≤55	≤55
Wheel diameter	d(mm)	127	127	127
Qty./20' Container	PCS	90	60	90
Service weight	kg	108	120	108
Carton size	mm	1150×730×330	1300×830×340	1150×880×330
