Lifting truck with electronic mobile scale from China manufacturer

Payment Terms:	T/T,
Place of Origin:	Zhejiang, China (Mainland)

Product Detail

Model No.: BFC6-IV

Production Capacity: 1000000 PCS one year

Delivery Date: 35 days

Capacity: 2000/2500kg

Turning radius: 1276/1346mm

Max.lift height: 200/190mm

Width overall forks: 520/550/680mm

Steering wheel: 200/180mm

Means of Transport: Ocean,

Packing: wood pallet

Brand Name: XILIN

Service weight: 30-80kg

Fork length: 1000/1100/1150/1220mm

lowered fork height: 85/75mm

Lowest fork height: 85/75mm

Fork wheel single: 80/74mm

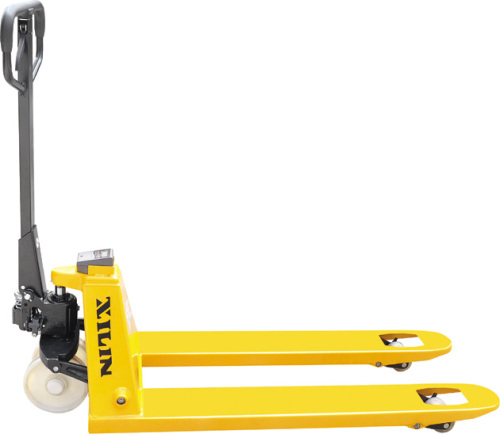

Lifting truck with electronic mobile scale;
2000/2500kg scale hand pallet truck

Name:Lifting truck with electronic mobile scale(hand pallet truck)
Model:BFC6-IV

●Display with dry batteries, no power supply, it is environment-friendly.

●Applicable for weighing in lifting.

●Minimum scale fraction: 5kg.

●Weighing accuracy: ±3%.

●With bush on key parts, quality is more reliable.

1KG=2.205LB 1INCH=25.40MM

Model		BFC6-IV
Capacity	kg	2000/2500	2000/2500
Lowest fork height	mm	85	75
Steering wheel	mm	φ200	φ180
Fork wheel single	mm	φ80	φ74
Max lifting height	h3(mm)	200	190
Total height	h14(mm)	1224	1214
Height without handle	Mm	486	476
Fork length	l(mm)	1000/1100/1150/1220
Width overall forks	b5(mm)	520/550/680	520/550/680
Ground clearance, center of wheelbase	m2(mm)	32	22
Aisle width for pallets 1000x1200 crossways	Ast(mm)	1743/1813	1743/1813
Aisle width for pallets 800x1200 engthways	Ast(mm)	1793/1813	1793/1813
Turning radius	Wa(mm)	1276/1346	1276/1346
Min. scale fraction	Kg	5	5
Service Weight	kg	60-80	60-80
